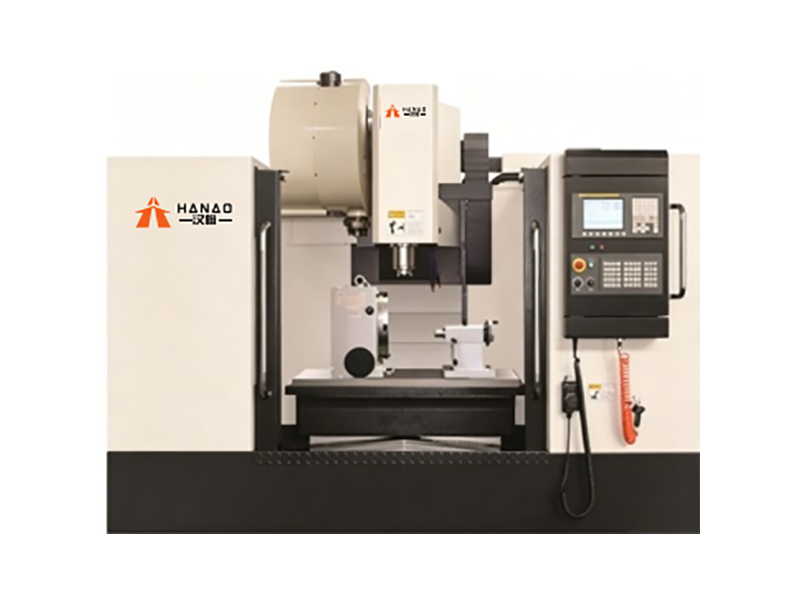

Structural Features and Configuration of Vertical Machining Centers:

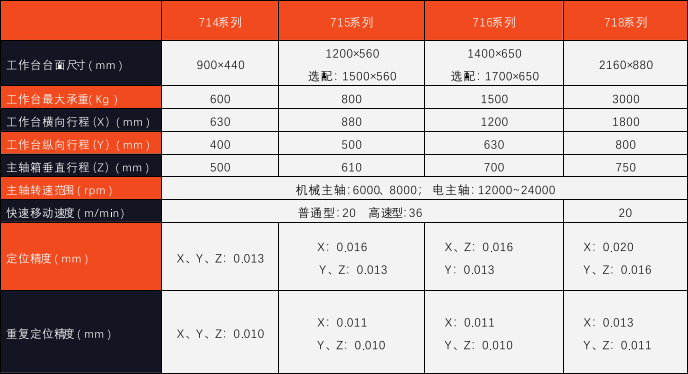

The four series of vertical machining centers feature table widths of 440, 560, 650 and 880 respectively, all wider than standard tables, with table lengths ranging from 900 to 2160.
The rapid traverse speed of machine tool coordinates has two options: 20 m/min (standard type) and 36 m/min (high-speed type).
Spindle speed ranges from 6000 rpm to 24000 rpm, covering mechanical spindles, through-coolant spindles and motorized spindles.
This model adopts the side double-chain chip conveyor with rear chip removal, which was launched to the market for the first time.
