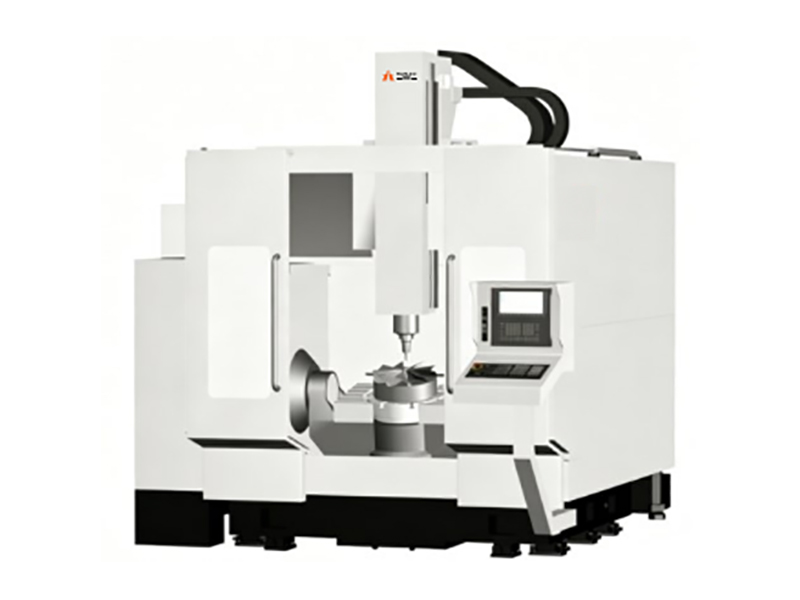

Structural Features and Configuration of High-Speed 5-Axis Linked Vertical Machining Center Series:
The 5-axis worktable adopts a trunnion-type 2-axis rotary table equipped with dedicated thrust angular contact bearings.
The C-axis is driven by a torque motor to deliver high torque at low speeds.
The A-axis employs a double gear anti-backlash reduction gearbox with automatic compensation function, and all gears are ground hard-tooth surfaces.
Hollow ball screws with internal forced circulation cooling are adopted for linear axes.
High-speed rotary tables and turn-mill composite spindles are available as optional configurations.
