Structural Features and Configuration:

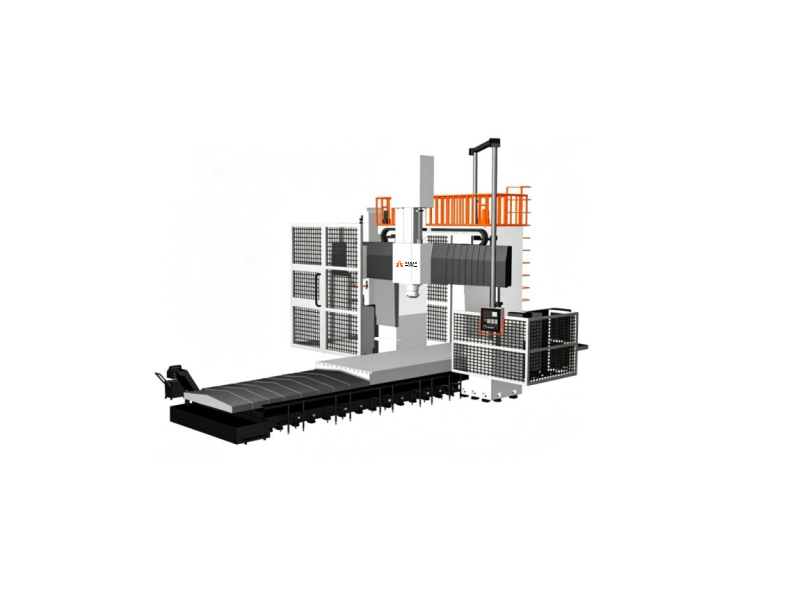

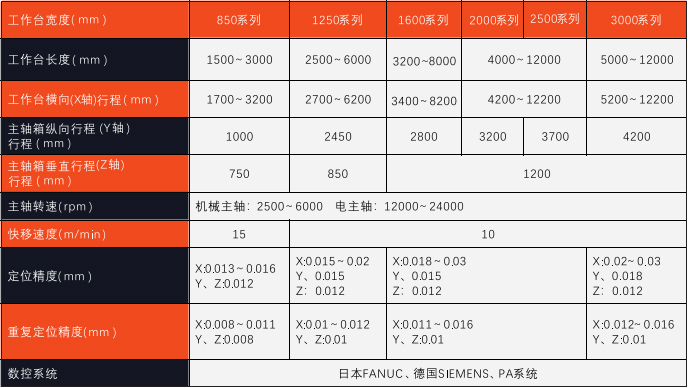

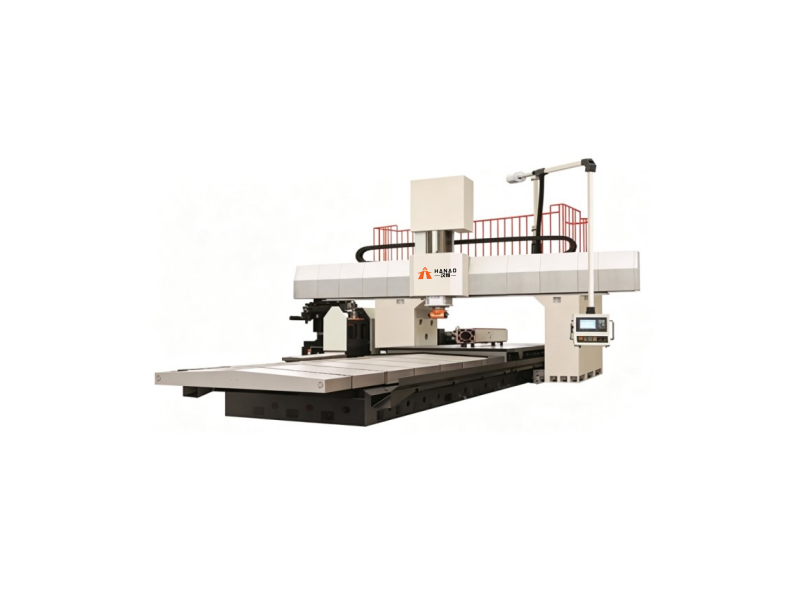

The fixed‑beam gantry series machine tools are divided into six series according to the worktable width ranging from 850 to 3000. The worktable length can be arbitrarily extended in 2000‑mm sections of the machine bed.
Patented auxiliary support for ball screws effectively addresses ball screw bending and deformation. The Z‑axis of the machine tool adopts dual‑cylinder hydraulic balance with a compensation system, together with core functional components such as axes and motor spindles.
All machine tools can be equipped with core functional components including Han‑Ao self‑produced and imported 5‑axis simultaneous dual‑swivel universal milling heads, vertical‑horizontal dual‑output pentahedron milling heads, high‑speed direct‑drive mechanical spindles, through‑spindle coolant spindles, and motor spindles.
