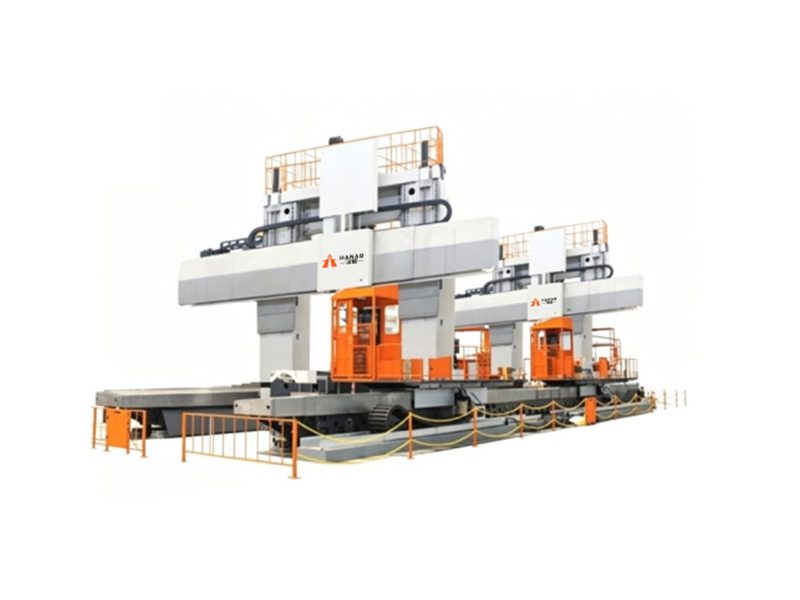

Structural Features and Configuration of Multi‑gantry Moving Machining Center Series:

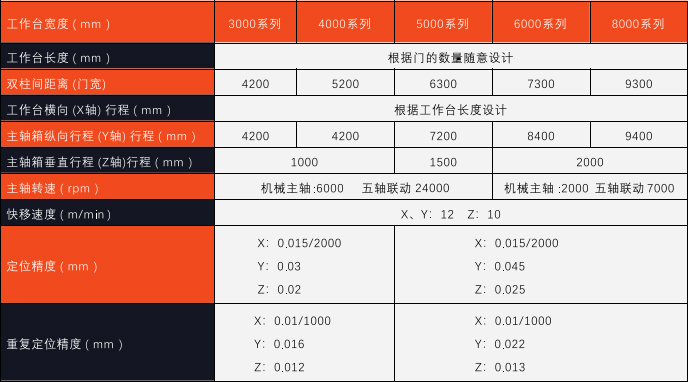

The worktable width ranges from 3000 to 8000, and the worktable length is designed according to the number of gantry frames. The machine tool is equipped with mechanical‑spindle gantry frames and five‑axis simultaneous‑motion gantry frames, which can be arranged arbitrarily in accordance with users' process requirements.
Proprietary technologies such as multi‑section spliced bed processing methods, self‑adaptive gantry frames for moving‑gantry machine tools, internal‑circulation balanced pressure oil cylinders, and load‑relieving crossbeams for large‑span gantry machine tools are widely adopted.
For the overall horizontal movement of the gantry frame, a dual‑side, dual‑drive and dual‑grating structure is adopted in the design.
It is equipped with Hanao self‑developed pentahedral milling heads and five‑axis simultaneous‑motion milling heads; imported ones are also available as an alternative.
