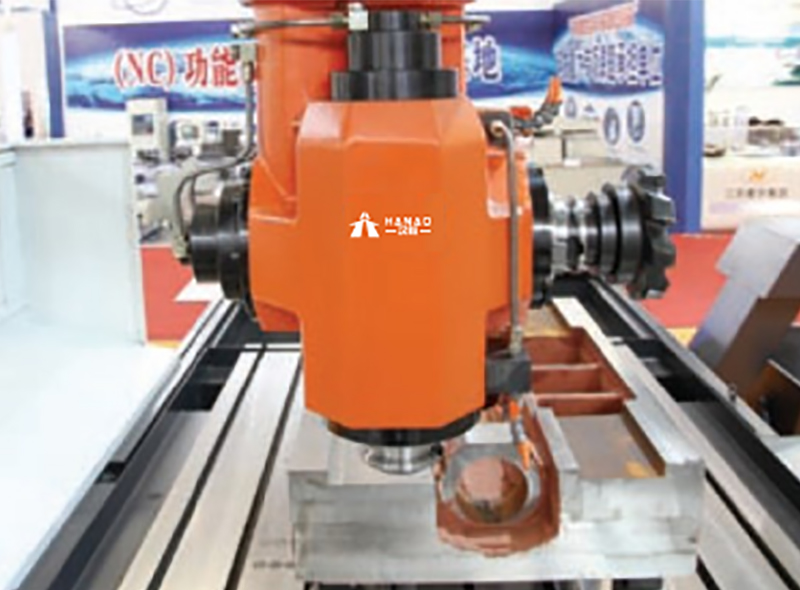

Structural Features of Vertical‑Horizontal Dual‑Output Five‑Face Milling Head Series:
Internally equipped with imported high‑precision cycloidal bevel gear transmission pairs, high‑precision ground end‑tooth disc pairs and precision‑ground inner‑diameter centering spline structures to realize high‑precision, high‑torque and high‑rigidity machining.
An internal‑tooth clutch is adopted to realize automatic power switching between the spindle and the C‑axis. Both tool clamping and C‑axis clamping are hydraulically controlled.
For the spindle unit, inspection and commissioning methods including dynamic vibration spectrum analysis and thermal deformation analysis are applied. High‑precision FAG spindle bearings made in Germany are equipped to guarantee high‑quality spindle output.
